CIF PA PA6EB130 Guangdong Shunyan

1. Product Introduction
PA6EB130 is a glass fiber-reinforced Polyamide 6 (PA6) compound, specifically formulated with 30% glass fiber content and a black color. The addition of glass fiber significantly enhances the material’s mechanical strength, rigidity, and dimensional stability compared to unreinforced PA6, making it suitable for demanding industrial applications that require balanced performance and durability.

2. Key Material Characteristics
• High Mechanical Performance: Exhibits excellent tensile strength, flexural strength, and flexural modulus, enabling it to withstand static and dynamic loads.

• Dimensional Stability: Low mold shrinkage (0.5%-0.7% at 23℃) ensures precise part geometry, reducing post-processing needs.

• Controlled Water Absorption: Absorbs only 1.0% water at 23℃ (per ISO 62), minimizing dimensional changes in humid environments.

• Moderate Impact Resistance: Izod notched impact strength of 12 kJ/m² (4mm sample, 23℃) provides basic toughness for structural parts.

• Flame Retardancy: Complies with UL 94 HB classification (1.6mm sample), meeting general flammability requirements for non-critical electrical/mechanical components.

• Consistent Density: Density of 1.36 g/cm³ (23℃) ensures uniform part weight and processing consistency.

3. Typical Applications
PA6EB130 is widely used in industries requiring high-strength, dimensionally stable plastic components, including:

• Electronics: Connectors, insulators, structural frames for consumer electronics (e.g., power adapters) and industrial control devices.

• Automotive: Under-hood auxiliary parts, interior structural components (e.g., bracket supports), and electrical system parts (e.g., wire harness clips) – suitable for environments with moderate temperature fluctuations.

• Electric Tools: Housings, gearbox components, and load-bearing parts for drills, grinders, and impact wrenches (resistant to wear and occasional impact).

• Heavy Machinery: Small structural parts (e.g., sensor mounts) and auxiliary components that require rigidity and resistance to mechanical stress.

4. Physical & Mechanical Properties

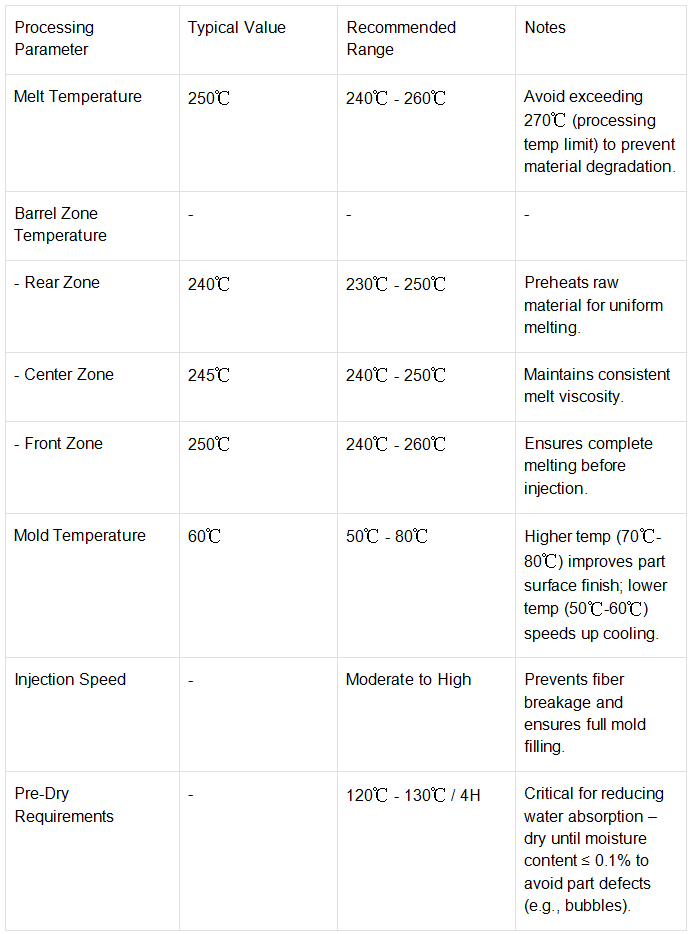

5. Processing Guidelines
Optimal processing parameters for injection molding (adjust based on machine type, mold design, and part complexity):

6. Certifications & Test Standards Compliance
• Flammability: UL 94 HB Class (tested per UL 94 standard).

• Physical/Mechanical Testing: Conforms to ISO standards (ISO 3451, ISO 294, ISO 527, ISO 178, etc.).

• Safety & Reliability: Tested per IEC standards for flammability (IEC 60695) and electrical properties (IEC 60243, IEC 60093) – suitable for industrial safety requirements.

7. Quality Disclaimer
• The data provided above are typical values based on standard testing conditions, intended for reference during product design and processing. They do not constitute an official quality assurance commitment or product standard.

• Users must independently test and verify the product’s suitability for specific applications, assuming full responsibility for safety, performance, and compliance with local regulations.

• This document does not involve any intellectual property disputes.
